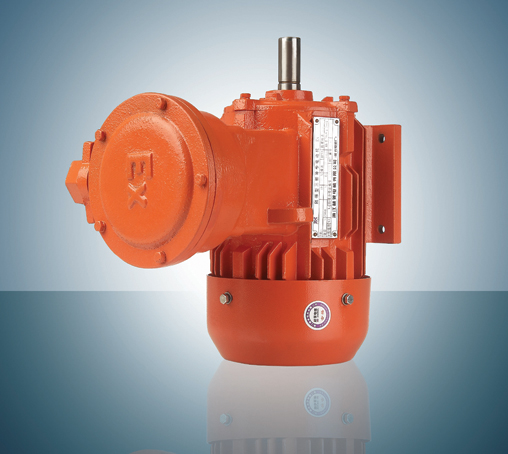

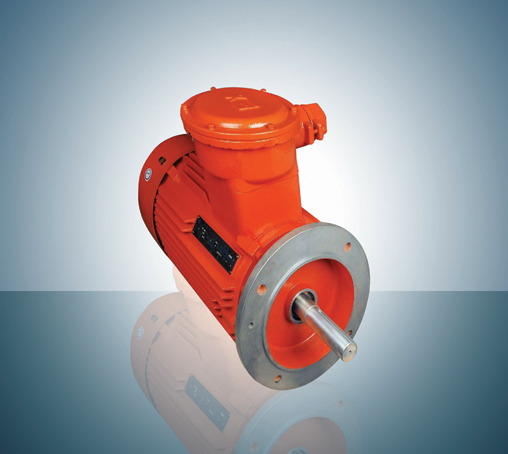

Y2B series explosion-proof three-phase asynchronous motor
Feature:
1: Explosion-proof grade is DIIBT4, Suitable for factory and the sites with explosive air mixture, the highest surface temperature is 135℃
2. Working voltage are 380V, 660V, 380V and 660V, and the frequency is 50HZ.
3. Cooling: air cooling IC411
4. Protection grade: IP55, the hydraulic motor.
5. Motor installation type: horizontal: B3, vertical large flange: B5, vertical small flange: B14, both horizontal and vertical : B35.
General modify:
1. Change the voltage (v) and frequency(HZ).
2. Modify the diameter and length of the output shaft and input shaft.
3. Special design for colour of surface and paint property composition.
